Vortex Flow Meter Manufacturer for Steam & Gas Measurement
Vortex flow meter manufacturer providing precision flow measurement for steam and gas applications. Engineered for harsh industrial conditions, these meters ensure consistent accuracy, low pressure loss, and dependable performance in continuous operations.

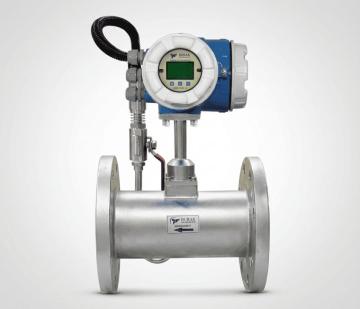

The BX-6000-G Vortex Flow Meter is designed for accurate liquid flow measurement using the proven vortex shedding principle. A precisely engineered bluff body generates stable vortices as liquid flows through the meter, which are detected by a high-sensitivity piezo sensor. These signals are processed by a microprocessor-based transmitter and displayed on a graphical LCD, providing reliable flow data even under high pressure and temperature conditions. Built with robust stainless-steel construction and a flameproof, weatherproof IP-66 enclosure, the meter ensures long-term stability, minimal maintenance, and dependable performance across industrial applications such as chemical processing, water treatment, and oil & gas.
Key Features (Short & Defined)
Large graphical LCD display
4–20 mA analog output (HART optional)
RS485 Modbus RTU communication
IoT-enabled online monitoring
Stainless-steel body construction
Field programmable configuration
Flameproof & weatherproof IP-66 enclosure
Key Benefits
High accuracy (±1% of reading)
Wide rangeability with turndown 1:10
Suitable for high-pressure applications
Fast response to changing flow conditions
No moving parts – zero maintenance
Easy installation and long service life
Technical Snapshot
The meter operates on the vortex shedding principle using a piezo sensor and supports DN 15 to DN 250 sizes with flanged or wafer connections. It offers measuring velocities from 2 to 10 m/s, operates up to 150°C, and supports pressures up to 16 bar standard (50 bar optional). Power supply is 24 VDC with RS485 Modbus communication.
