Industrial Thermal Mass Flow Meter Supplier in Mumbai
Product Description

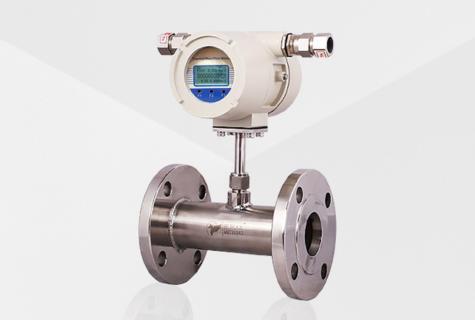

The BT-3020-G Inline Thermal Mass Flow Meter combines precision engineering with advanced dual platinum wire wound sensor technology for highly accurate gas flow measurement. Encased in a 316 Stainless Steel sheath, it ensures long-term stability and reliability. Available in integral and remote transmitter models, the unit features a graphical LCD display for real-time flow, cumulative data, velocity, and gas temperature monitoring. It supports 4-20mA HART, RS485 Modbus, and pulse outputs, providing flexible connectivity for industrial systems. The dual power input (24VDC & 230VAC) and flameproof, weatherproof aluminum housing (PESO approved) make it ideal for hazardous areas.
The inline design incorporates a precision-engineered flow chamber that maintains consistent gas flow, ensuring optimal interaction with sensor elements. With flanged SS316 construction, the BT-3020-G supports pipe sizes from ½” to 4” and is compatible with ANSI, DIN, and JIS standards. It’s the preferred choice for industries measuring clean gases such as air, natural gas, biogas, LPG, flue gas, and flare gas, offering direct mass flow measurement, rapid response, and negligible pressure drop.
Key Features
Dual platinum wire wound sensor (CTA principle)
Graphical LCD for flow, total, velocity, and temperature
4-20mA HART, RS485 Modbus, and pulse output
SS316 construction with no moving parts
Dual power input: 24VDC & 230VAC
IoT monitoring and diagnostic functions (optional)
Explosion-proof, flameproof dual-chamber aluminum housing
Accuracy: ±2% of reading + 0.5% FS
Operating Temp: -20°C to +150°C (up to +250°C optional)
Pressure: up to 16 Bar (50 Barg optional)
Applications
Ideal for clean gas measurement in air, natural gas, biogas, oxygen, nitrogen, and industrial gas systems, the BT-3020-G delivers reliability and accuracy across manufacturing, energy, and utility sectors.
