Order Thermal Mass Flow Meter From Trusted Manufacturer

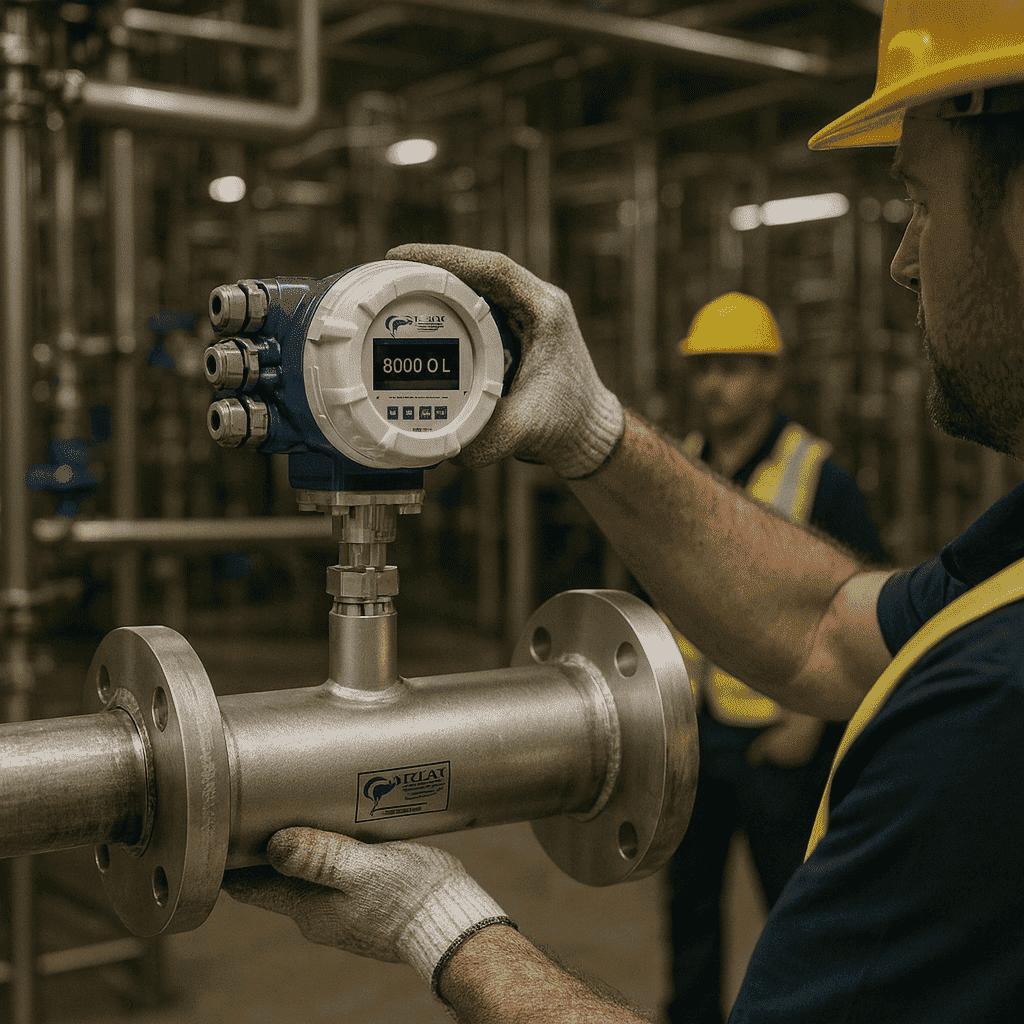

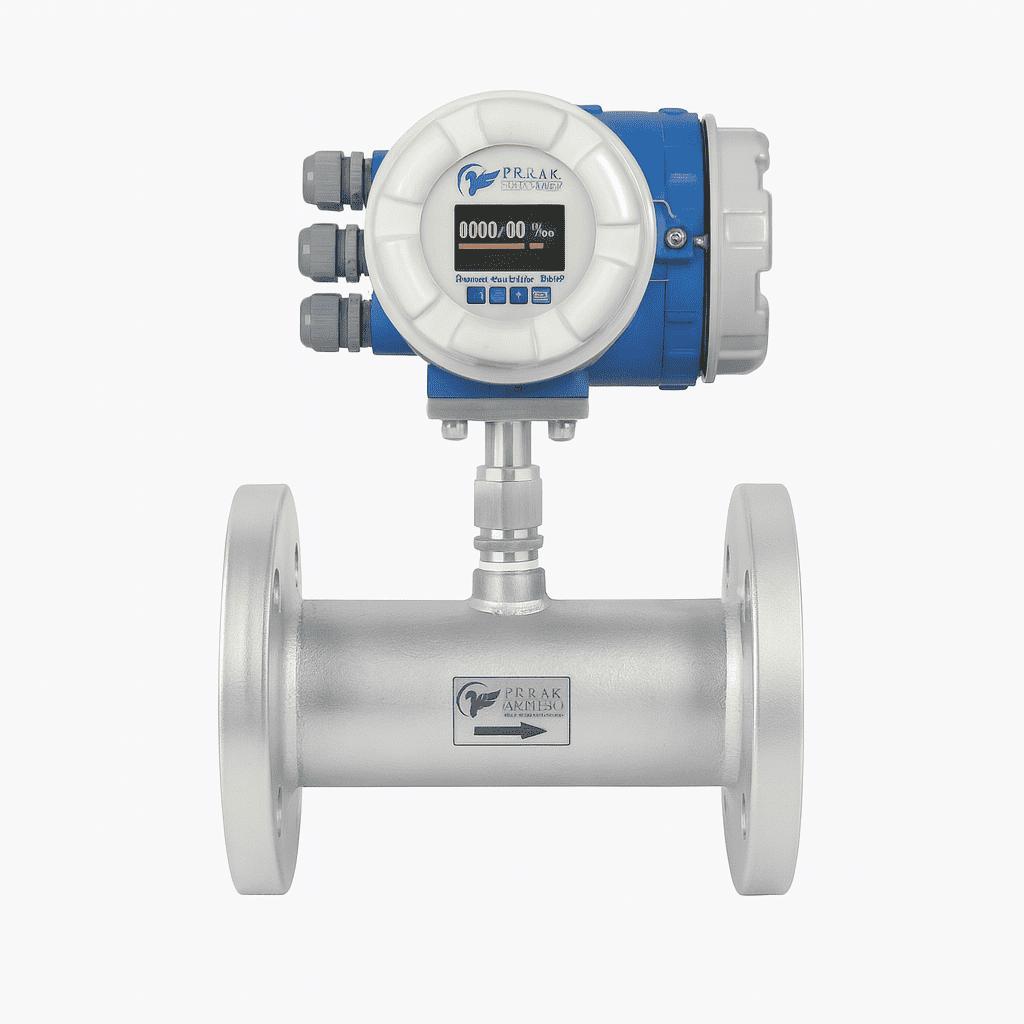

DescriptionThe BT-3010-G Inline Thermal Mass Flow Meter uses an advanced thermal dispersion sensor to deliver high accuracy, repeatability, and stable gas flow measurement. It is ideal for monitoring and controlling gas flow in pipelines and industrial process systems.
Its flange connection ensures secure installation with minimal pipeline modification. The inline design provides smooth integration and accurate readings without pressure loss. Built with SS316 industrial-grade materials, it is engineered for harsh environments and long-term reliability.
The meter offers multiple output options, including 4-20 mA and RS485 Modbus RTU, ensuring easy integration with plant control systems. It features self-diagnostics, detecting performance issues and reducing maintenance needs.
With PESO-certified flameproof and weatherproof housing, it is suitable for demanding industries such as oil and gas, chemical plants, energy, and utilities.
Key Features
Graphical OLED display
4–20 mA analog output
Dual-chamber die-cast aluminum enclosure
SS316 sensor probe with no moving parts
Easy installation with 1/2 to 1 inch NPT probe
Field programmable
Optional IoT online monitoring
Flameproof and weatherproof
Designed for harsh environments
Key Benefits
Direct mass flow measurement
Fast response time
High accuracy and reliability
No moving parts and low maintenance
Wide turndown ratio
Low pressure drop
Wide operating temperature range
Important Technical Specifications
Mechanical
Measuring principle: Constant Temperature Anemometer (CTA)
Sensor: PT20, PT300/PT1000
Process connection: Flange ANSI / JIS / DIN
Pipe size: DN50 to DN2000
Housing: Dual-chamber die-cast aluminum
Response time: 1 second
Electronics
Display: OLED
Parameters: Flow + Totalizer
Output: 4–20 mA
Communication: RS485 Modbus RTU
Power: 24 VDC
PESO-approved flameproof enclosure
Process
Mediums: Natural gas, nitrogen, oxygen, CO₂, hydrogen, methane, gas mixtures, etc.
Measuring range: 1–70 nm/s (standard), up to 100 nm/s (optional)
Accuracy: ±2% of reading + 0.5% FS
Temperature: –20 to +150°C
Pressure: 0–16 bar (higher optional)
